Add or Edit an IP Camera to application

Add or Edit an IP Camera

An IP Camera is a digital video device that sends video over an IP network in real time.  Captured images from an IP Camera can be viewed on your PC through a network connection.  IP Cameras do not plug directly into your computer like webcams.

To connect a new IP camera, click Camera >> Add Camera and select the option IP Camera.

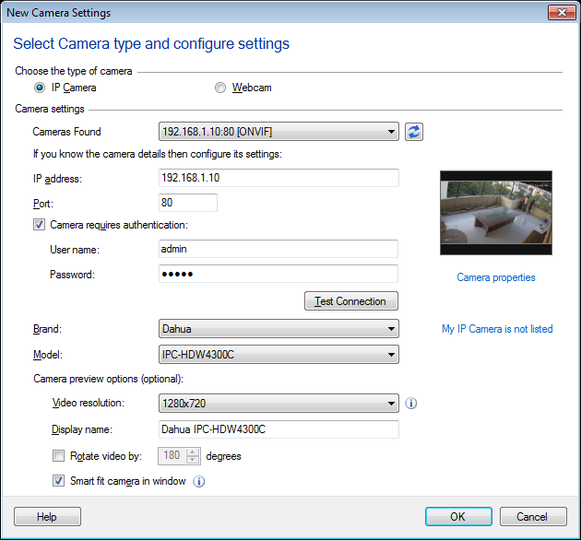

On opening the New Camera Settings dialog, IP Camera Viewer will start searching for both ONVIF and UPnP IP Cameras present in your network. All auto discoverable cameras will be listed in Cameras Found dropdown list as shown below:

Select a camera from the Cameras found dropdown and its associated camera details will be automatically updated on the New Camera Settings dialog. Some cameras require authentication to view the video stream.  If your camera does not support ONVIF login, then uncheck the I am using ONVIF login option. Specify the User name and Password using Camera requires authentication checkbox.  You can also manually connect to an ONVIF camera present outside your Network by clicking on Test Connection button after entering all the critical details of the camera.

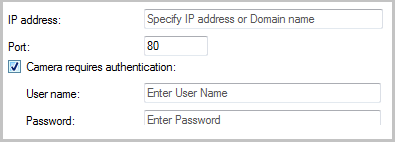

Critical details of the camera include the following fields on UI:

If your IP camera is not compatiable with ONVIF then select the Brand and Model from the drop-down list.  If your Model supports MPEG-4 / H.264 then RTSP Port will be visible.

If your Model is a Video server then the Display Camera dropdown will be visible.

By default, the first camera will be selected.  The number of supported cameras in the Video Server will be listed in ascending order.

The Video resolution drop down list allows you to select a preview resolution for IP Cameras that offer multiple resolutions.  If you want, you can name the camera in the Display name option.  By default, the Camera Brand and Model will be displayed as the name of the camera.

Use the Rotate video by option when the camera is mounted upside-down, for instance when hanging from a ceiling or under a shelf.  You can rotate your camera view by 1o up to 359o.  The camera view, and all recorded videos and photos, are rotated by specified angle.

Use the Smart fit camera in window option when you want the camera image to fit in preview window.  The camera image will be resized and adjusted according to the size of preview window.

To test if IP Camera Viewer is able to connect to the specified IP Camera, click Test Connection.  If successful, the camera video stream will appear in the preview window.

My IP Camera is Not Listed

IP Camera Viewer supports different types of IP cameras.  Selecting a specific model tells IP Camera Viewer which URL to use to get the video stream.  If your IP Camera is not listed then send following information to our Technical Support Team.

  • Camera Brand and Model
  • IP address and Port number
  • User name and Password

A profile will be created for your camera Brand or Model.  In the next release of IP Camera Viewer, your camera model will be listed in the dropdown.
